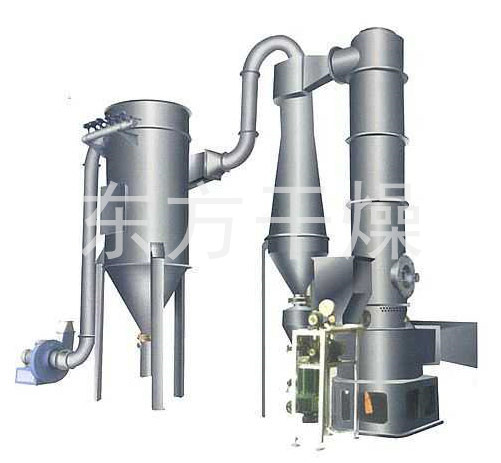

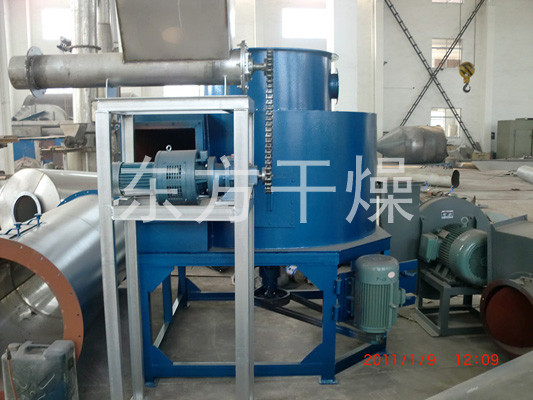

XSG Spin flash dryer

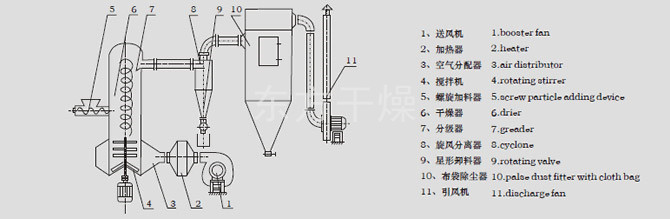

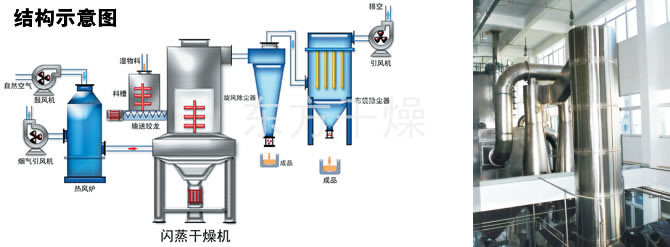

Working principle
  Tangent into the bottom of the hot air dryer, a powerful rotating wind field is formed in the driving of the stirrer. Paste material from the screw feeder into the dryer at high speed stirring blade intense action, the material by the impact, the role of friction and shearing force is dispersed, the bulk materials will soon be smashed full contact with the hot air, heat ,dry. The dehydrated material dry with hot air rising, grade large ring particle retention, small particles from the dryer exhaust outside the center of the ring by the cyclone and dust recycling, not dry or bulk materials Shuaixiang wall by centrifugal force again fall to the bottom was crushed dried.
Features
◎ cyclone, fluidized, spouted and smashing step technologies combine.
◎ equipment is compact, small size, high efficiency, continuous production, to achieve a "small equipment, large-scale production."
◎ drying intensity, low energy consumption, high thermal efficiency.
◎ residence time is short, good product quality, can be used for drying heat sensitive materials.
◎ negative or slightly negative pressure operation, tightness, high efficiency, eliminate environmental pollution.
Adapt materials
Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide,
Sodium oxalate, cellulose acetate, and other organic pigments.
Dyes: anthraquinone, black iron oxide, indigo pigments, butyric acid, zinc sulfide, various coupling
Azo dyes intermediates.
Inorganic materials: borax, calcium carbonate, calcium hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide,
Various metal hydroxides, all kinds of heavy metallic salt, synthetic cryolite and the like.
Food: soy protein, gelatinized starch, lees, wheat, wheat starch and the like.




Technical Specifications

Model XSG-2 XSG-4 XSG-6 XSG-8 XSG-10 XSG-12 XSG-16 XSG-20
Host Nei Jing mm 200 400 600 800 1000 1200 1600 2000
Wind M3/h 350-500 1150-2000 2450-4500 4450-7550 7000-12500 10000-20000 18000-36000 28200-56500
Evaporation of water kg/h 12-17 40-70 80-150 150-250 230-4250 300-600 600-1000 1000-1500
Maximum Capacity kw 10 20 40 65 85 105 150 230
Maximum height m 4.0 4.8 5.8 6.5 7.1 7.8 8.8 10.1
Covers m2 15 20 28 35 40 52 80 150

Note: 1 is the amount of water evaporation into the air temperature was 80oC 1, the air temperature was 80oC evaporation of water per hour,
2. In addition to the above model for outside users to make a special design,
3. The above standard package installed capacity, according to the material can significantly reduce support different power.
Material handling and characteristics (type 6 flash as a benchmark)

Material name Stearate Aluminum hydroxide Zinc carbonate Monosultap TMTD DSD acid Red iron oxide Carbon dioxide Cuprous chloride Silica
Inlet air temperatureoC 150 180 150 120 140 150 200 180 200 280
First moisture content% 80 55 80 30 65 60 60 45 30 85
Final moisture content% 0.5 1.5 1.0 1.0 0.5 0.5 0.5 1.0 3.0 5.0
The actual drying capacitykg/h 140-160 250-280 130-170 80-110 80-120 80-120 300-350 280-320 290-310 250-300



Material name Accelerant Oil-soluble ink Metabolic acidosis MnZn Phthalocyanine blue Calcium citrate Ultrafine Mud additives Isocyanuric acid sodium dioxide Three oxygen iso cyanuric acid sodium
Inlet air temperatureoC 150 150 120 150 140 160 200 180 150
First moisture content% 60 45 30 55 40 70 75 25 30
Final moisture content% 0.5 2.0 1.0 1.0 1.0 1.5 5.0 0.2-2 1.0
The actual drying capacitykg/h 80-110 350-380 120-150 160-180 300-350 430-470 290-310 80-120 90-150
