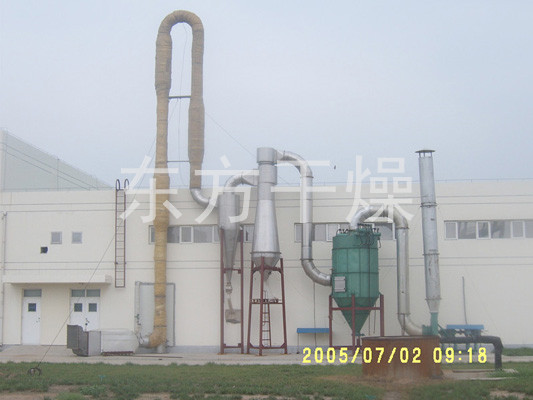

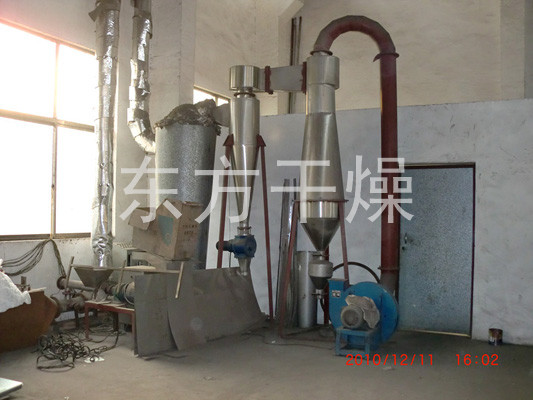

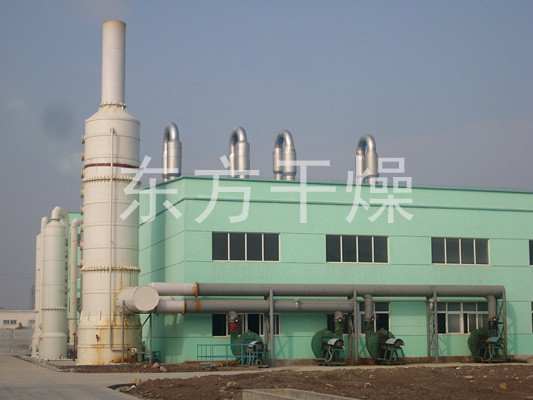

Product description
QG series pulse air dryer is drying large quantities of equipment, which uses instant drying principle, the use of rapid movement of air heating,
Driven wet material, wet material suspended in the hot air, so strengthen the whole drying process, improve the heat and mass transfer rate, after air-drying material, unbound water is almost completely removed (for example: starch material feed about moisture ≤40%, the material may be finished 13.5%), and the dried material, no deterioration phenomenon, generally drier than the yield has improved significantly, users can achieve a higher economic benefits in the short term.
Features
QG air dryer, for the pharmaceutical, chemical, food, building materials, plastics and other industries powdery materials dehumidification drying, for example: starch, fish meal, salt, lees, feed, gluten, plastic resin, ore, coal, sugar drying acid, a · S · C stupid formic acid, 2, 3, polyethylene polypropylene acid, sodium sulfate, sodium metabisulfite and other materials.
I would air drying equipment outside advice and took the design and manufacture of non-stereotyped air dryer.
Applications
The company manufacturing QG air drying equipment, the introduction of advanced US technology and equipment, through a unique design, has reached the international advanced level class, this high degree of automation throughout the equipment, low investment, low energy consumption, take up human and plant area is relatively small, universal wide, it is ideal for modern equipment.
Technical Specifications
| Specifications | QG-50 | QG-100 | QG-250 | QG-500 | QG-1500 | |
| Water evaporation | kg/h | 50 | 100 | 250 | 500 | 1500 |
| Air filter | Area(m2) | 4 | 6 | 18 | 36 | 60 |
| Number of units | 1 | 1 | 1 | 2 | 2 | |
| Replacement time(h) | 200(Bag) | 200(Bag) | 200(Bag) | 200(Bag) | 200(Bag) | |
| Heater | Area(m2) | 30 | 43 | 186 | 365 | 940 |
| Steam consumption(kg) | 120 | 235 | 450 | 972 | 2430 | |
| Working pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Fan | Model | 9-19-4.5 | 9-26-4.5 | 9-19-9 | 9-19-9 | 9-26-6.3 |
| Number of units | 1 | 1 | 1 | 2 | 4 | |
| Power(kw) | 7.5 | 11 | 18.5 | 37 | 125 | |
| Feeder | Throughput(kg/h) | 150 | 290 | 725 | 1740 | 4350 |
| Control method | Electromagnetic speed motor | Electromagnetic speed motor | Electromagnetic speed motor | Electromagnetic speed motor | 电Electromagnetic speed motor | |
| Power(kw) | 0.6 | 1.1 | 3 | 3 | 7.5 | |
| Cyclone | Model | CLK-350-400 | CLK-500-450 | ZF12.5 | ZF12.5 | |
| Effectiveness(%) | 98 | 98 | 98 | 98 | ||
| Quantity | 2 | 2 | 2 | 3 | ||
| Bag filter | Quantity | 1 | 1 | 1 | 1 | 1 |
| Consumption | 3.6-20.0 | |||||

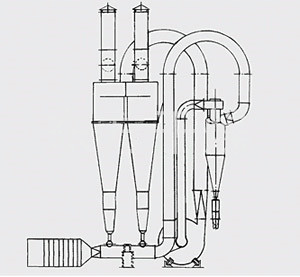

From easy-to-air drying dehydrated granules, powder materials, the rapid removal of water (mainly surface water). In air drying, since the material in the dryer residence time is short, so that the quality of the finished product was dried to give the best control. I plant Enhanced air drying is to increase the set speed can be adjusted steplessly strengthening composed in basic, the wet material into strengthening through the screw feeder and after hot air well mixed, rapid rotation of the crushing blow knife and propulsion , the material is crushed into fine particles, while moving towards the exit in the dry, and finally into the drying tube in the wind, attracted by the more uniform drying. Wet wind can not attract heavier particles continue to be crushed, dried, until the wind can be sucked up into the drying tube.
The main purpose
This machine is particularly suitable for moisture content than the larger, the material was wet paste with other drying methods can not be dried materials, such as: white carbon black, vinyl acetate and vinyl chloride copolymers, cellulose acetate flocs, catalysts, CMC , CT-1 resin, forging gypsum, electrolytic manganese dioxide, anthraquinone sulfonic acid ammonium salt, zeolite, diatomaceous earth, silica catalyst, bone meal, kaolin, ammonium perchlorate sulfonamide drugs, synthetic resins, active gluten, active clay, chemical cake, rutile drill white powder, sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, phosphate starch, dyes, calcium citrate, coal, bread shaped face surrounded by feeding rice bran, clay , clay cement, urea, bentonite, ball clay, aluminum hydroxide, barium hydroxide, calcium lactate, food, washed kaolin, cyanuric acid, paddle gypsum, lime, biological products, carbon black, calcium carbonate slurry, sludge slag, aluminum stearate, organic chemicals, iron oxide, organic fuel, corn gluten feed, wet mud, mica powder, pharmaceuticals, paints, paper pulp of potassium, lees residue and so on.Technical Specifications
| Model |
Evaporation of water kg/h (Calculation of surface water) |
Installed power kw | Covers m2 | height m |
| JG 50 | 50 | 10 | 20 | 9 |
| JG 100 | 100 | 20 | 32 | 11 |
| JG 200* | 200 | 31 | 40 | 11 |
| JG 250 | 250 | 32 | 64 | 13 |
| JG 500* | 500 | 54 | 96 | 13 |
| JG 1000* | 1000 | 135 | 120 | 15 |
| JG 1500* | 1500 | 175 | 200 | 16 |
| NOTE: There is an asterisk in the secondary drying, installed power, steam heating area is calculated. | ||||

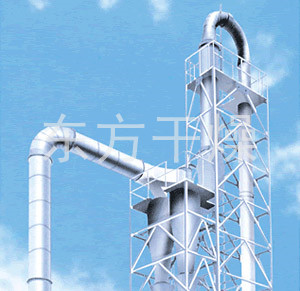

Working principle
Works FG series dryer is drying the wet material is divided into two steps. First by the raw exhaust and secondary drying of supplement hot body is a mixture of positive pressure of dry, high temperature and low exhaust gas is discharged outside the machine after use, semi-dried by a hot fresh air for secondary vacuum drying. After drying the finished product weighing and packaging. Using high temperature and pressure exhaust gas is used as a drying, thus completing the cycle of good drying process, supplementary hot air can be adjusted according to need, and thus the machine wide applicability.
|
|
Adapt materials
This equipment is widely used in food, chemical, pharmaceutical, building materials and other industries powder, dry granular materials. The series has been used dried products: starch, glucose, fish powder, sugar, sugar, wine tank, feed, gluten, plastic resin, coal, dyes, etc.
技术规格
| Model | Evaporation of water (kg/h) | Installed power kw | Covers m2 | Thermal efficiency (%) |
| FG0.25 | 113 | 11 | 3.5x2.5 | >60 |
| FG0.5 | 225 | 18.5 | 7x5 | >60 |
| FG0.9 | 450 | 30 | 7x6.5 | >60 |
| FG1.5 | 675 | 50 | 8x7 | >60 |
| FG2.0 | 900 | 75 | 11x7 | >60 |
| FG2.5 | 1125 | 90 | 12x8 | >60 |
| FG3.0 | 1150 | 110 | 14x10 | >60 |
| FG3.5 | 1491 | 110 | 14x10 | >60 |
