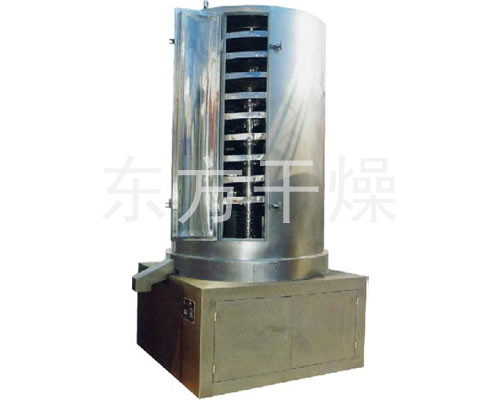

LZG series spiral vibration dryer

Product description
  Wet material from the top of the feed inlet into the spiral bed, under the effect of centrifugal force and the circumferential direction of gravity, the material along the helix bed from the bottom up as a jumping motion; at the same time, clean and hot air into the bottom of the bed by the spiral, and distribute the material in the bed full of heat and mass transfer, the humidity discharged from the top of the mouth. So that the material to achieve the purpose of drying.
Applications
  The drying equipment is mainly used in traditional Chinese medicine pill product drying; also applicable to granular, short strip, dried spherical materials chemical constraints, food, plastics, building materials, feed and other industries.
Main feature
● hot air several times through the material layer and the reverse flow of material, the heat exchange sufficiently, high thermal efficiency.
● compact, small footprint.
● residence time in the bed can be adjusted, easy to operate.
● simultaneous material helix bed from bottom to top in a circular motion, the jump itself, thus increasing the contact material with hot air, and enhance the drying effect.
● continuous access to material suitable for pipeline operation, and easy to achieve "GMP" standard, instead of the traditional box-type drying.
● surface and shape of raw material basically no damage, not only to ensure the roundness of pill but also greatly reduces the broken rate of pill.
Technical Specifications

Model LZG-1.0 LZG-1.2 LZG-1.4 LZG-1.6 LZG-1.8
Diameter (mm) 1000 1200 1400 1600 1800
Vibration motor power (kw) 2×1.1 2×1.1 2×1.5 2×1.5 2×2.2
Dimensions(m) 1.2×1.2×2.7 1.4×1.4×2.7 1.6×1.6×3.3 1.8×1.8×3.3 2.0×2.0×3.3
Weight (kg) 1400 1680 2800 3100 3800
Inlet air temperature (℃) 60-200 60-200 60-200 60-200 60-200
Wind(m3/h) 1487 2380 3721 4462 5930
