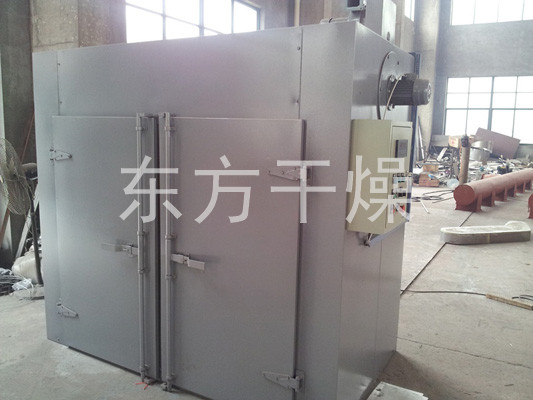

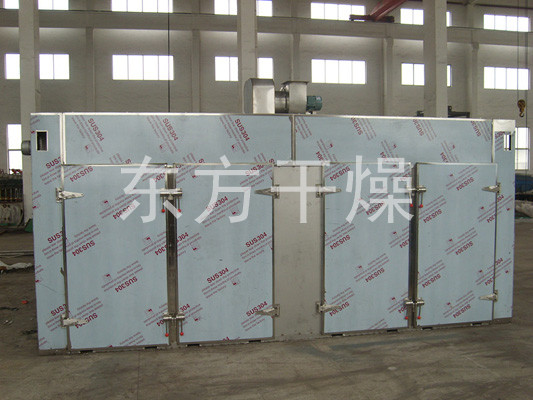

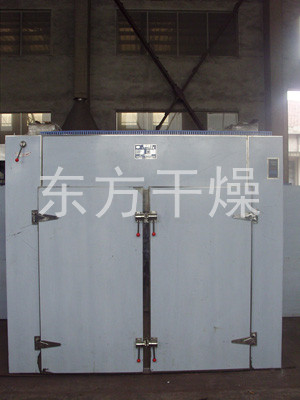

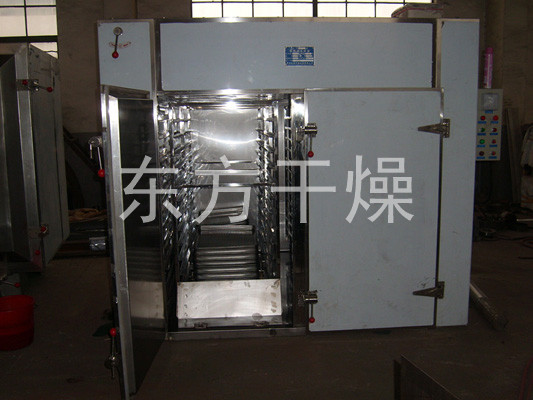

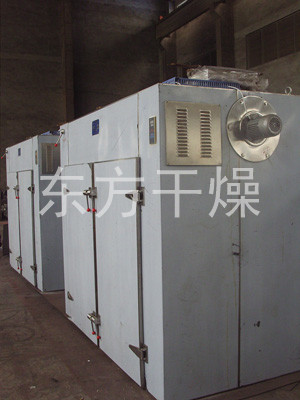

CT-C series hot air circulation oven

Product description

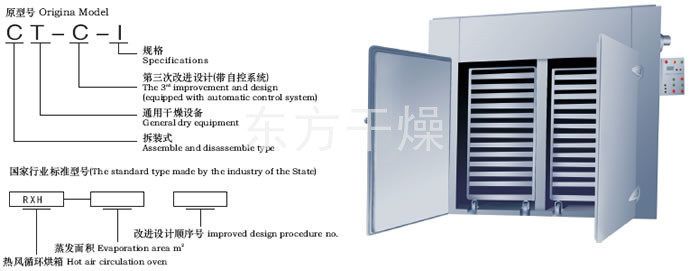

　　CT-C series hot air circulation oven is equipped with low noise axial flow fan and automatic temperature control system, closed the entire circulatory system, improve the thermal efficiency of oven drying room from the traditional 3-7% to the current 35-45% The maximum thermal efficiency up to 50%. CT-C hot air circulating oven design success, so the hot air circulation oven has reached the advanced level at home and abroad. For the country to save a lot of energy, improve the economic efficiency of enterprises. 1990 by the State Pharmaceutical Administration industry standard, uniform type is RXH.
Adapt materials
　　Suitable for heat curing the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry, heavy industry materials and products, dehydration. As raw material medicine, medicine, Chinese Herbal Medicine, extracts, powders, granules, powder, pill, packing bottle, pigment dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.

Features
　　Most of hot air inside the loop, high thermal efficiency, energy conservation. Use of forced ventilation box with adjustable air divider plate, uniform drying, heat source can be steam, hot water, electricity, far infrared, a wide choice. Machine noise, running balance. Temperature controlled, easy installation and maintenance. Wide range of applications can be drying various materials and is a versatile drying equipment.
◎ heating source has steam, electricity, far infrared, electric steam dual-use for users to choose;
◎ Use temperature: steam heating 50 ~ 140oC, the highest 150oC;
◎ electricity, far infrared temperature 50 ~ 350oC;
◎ equipped with automatic control system and computer control system for users to choose;
◎ commonly used steam pressure 0.02-0.8Mpa (0.2 ~ 8kg / m2);
◎ equipped with electric heating, calculated according to I-15KW, practical 5-8kw / h;
◎ special requirements when ordering instructions;
◎ non-standard oven price is negotiable;
◎ use temperature greater than 140oC or less than 60oC, to specify when ordering;

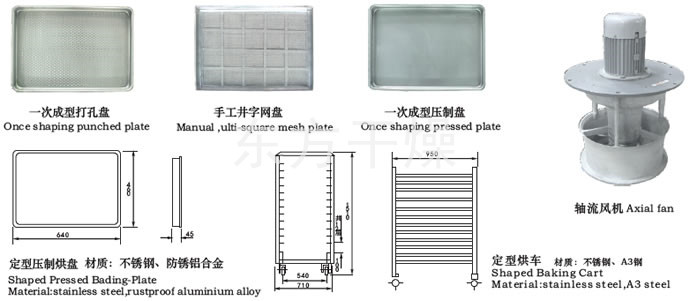

◎ Our factory baking car, baking tray size uniform, interchangeable;
◎ baking tray size: 460 × 640 × 45 (mm).
Technical Specifications
