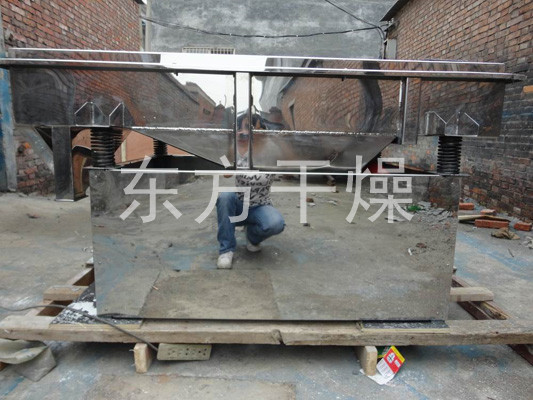

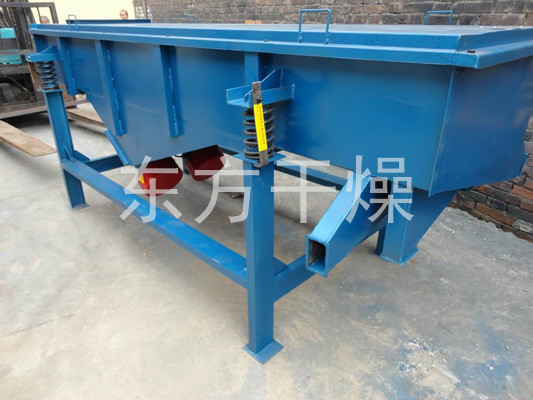

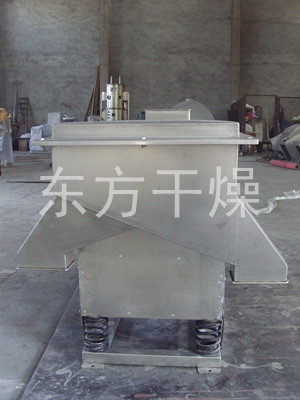

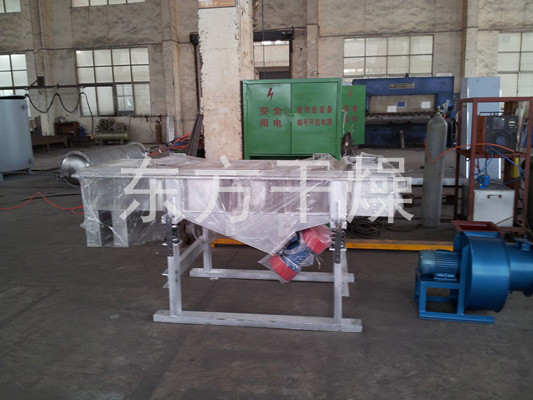

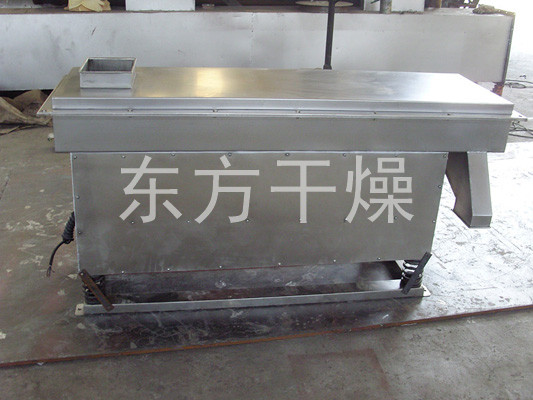

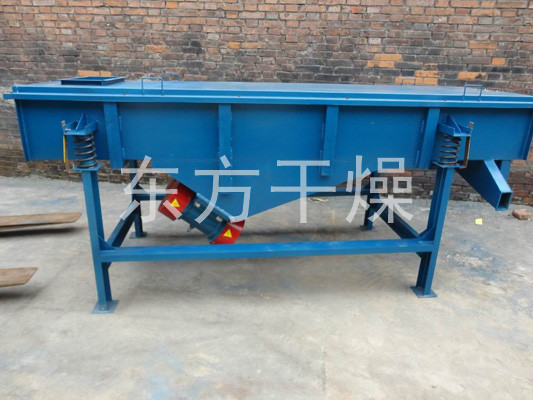

FS Series Square Vibrating Sieve

Description
  The machine is composed of a material inlet and outlet mesh screen box, vibration source and absorber of the three components.Frame and screen box connected with 4-6 soft rubber shock absorbers fixed up and down, the boot that centrifugal force is generated, the amplitude of an eccentric block, corresponding to the shock absorber control, the need to achieve the best performance, so that the material has a parabolic shock and screening process loose. Widely used in pharmaceutical, food, chemical, metallurgy, electronics and other industries ideal equipment for screening.



Technical Specifications

Model Production capacity
(kg/h)
Mesh sieve
(mesh)
Motor Power
(kw/h)
Vibration frequency
(r/min)
Exciting force
(kN)
The height of the outlet The outlet height Lower outlet height Dimensions
(L×W×H)
Net weight
(kg)
FS-0.5M2-X 450 2-150 0.2×2 1400 0-2.5×2 800 680 500 1300×770
×1060
220
FS-0.7M2-X 650 2-150 0.2×2 1400 0-2.5×2 850 750 530 1700×680
×1100
280
FS-0.8M2-X 750 2-150 0.2×2 1400 0-2.5×2 850 750 530 1600×830
×1150
320
FS-1.2M2-X 1100 2-150 0.2×2 960 0-5×2 880 760 520 1900×980
×1220
450
