Description:

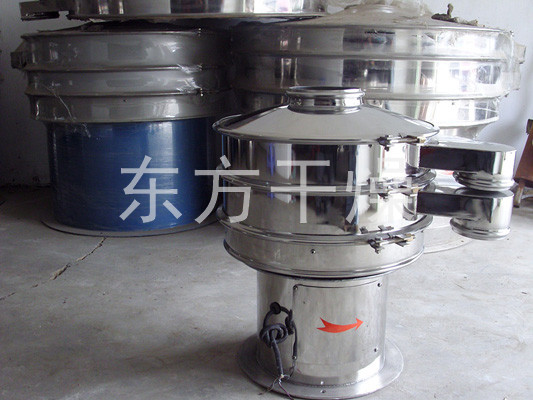

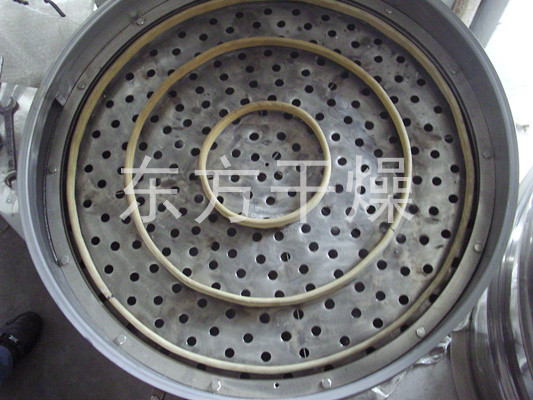

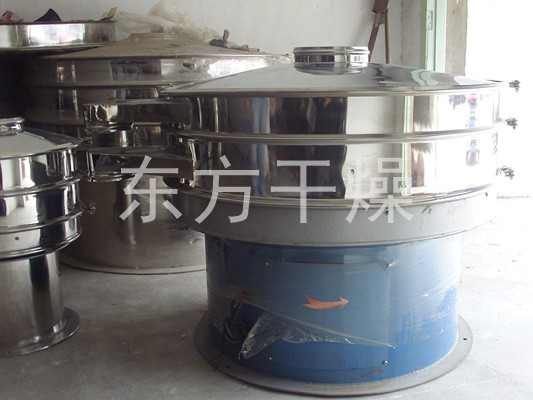

The machine consists of hopper, vibration chamber, coupling and motor. There are eccentric wheel, rubber software, spindle, bearings and other components. The adjustable eccentric weight can drive to the motor through the spindle center line, the centrifugal force generated in a state of imbalance, that makes raw material form vortex in the sieve. The amplitude of the weight adjuster can be adjusted according to different raw materials. The whole structure is compact, small volume, no dust, low noise, high quality, low energy consumption and easy maintenance move.
Technical Specifications
| Model | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| Production capacity(kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| Mesh sieve | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| Motor Power(kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| Spindle speed(rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| Dimensions(mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| Net weight(kg) | 100 | 180 | 250 | 300 | 350 | 400 |
