Characteristics and Uses

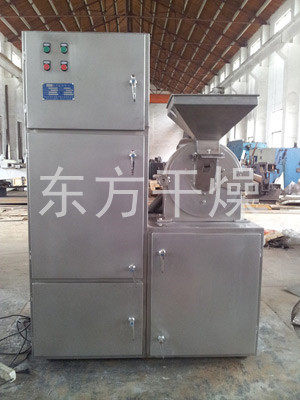

The machine (group) used in crushing the pharmaceutical, chemical, food, pesticide and other industries brittle materials, crushing and dust collection as a whole new generation of grinding equipment,
extremely versatile.
Structure and Principle

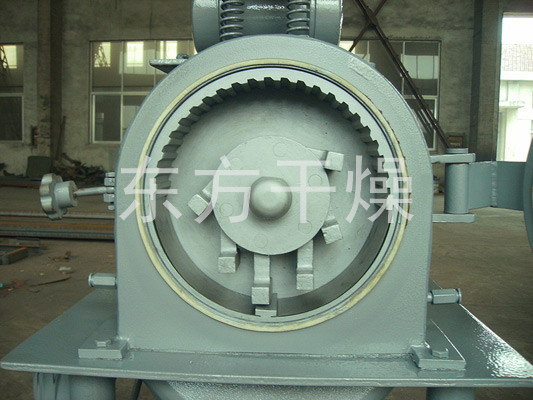

The relative movement of the machine use activities and fixed gear tooth plate between the plate, so that the material by the teeth impact, friction and material between each other; the impact and get crushed. The crushed material rotating centrifugal force to automatically enter predator bag filter dust from the vacuum box through recycling. Designed according to "GMP" standard design, all made of stainless steel, the production process, no dust. And can improve the utilization rate of material and reduce business costs, has reached the international advanced level.
Technical Specifications
| Model | Unit | 20B/20B unit | 30B/30B unit | 40B/40B unit | 60B/60B unit |
| Production capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed | r/min | 4500 | 3800 | 3400 | 2800 |
| Feed size | mm | 6 | 10 | 12 | 15 |
| Grinding fineness | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| Crushed motor power | kw | 4 | 5.5 | 11 | 15 |
| Suction fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | kg | 250 | 320 | 550 | 680 |
| Dimensions（L×W×H） | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| Dimensions (units)（L×W×H） | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
