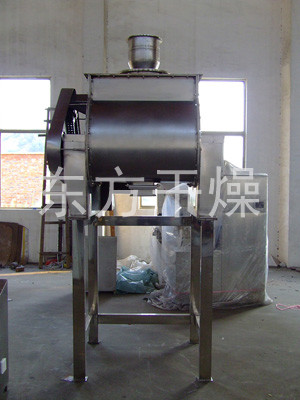

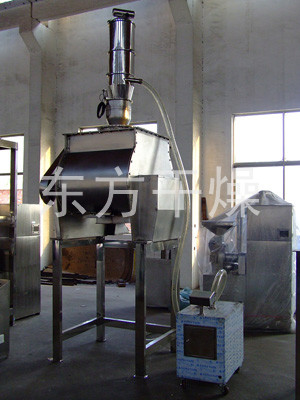

WZ series weightlessness mixer

Working principle
  This series of mixer with a strong, efficient mixing is characterized by a horizontal cylinder of two counter-rotating constant stirring, the special arrangement of the blades ensure that the material radial, circumferential, and axial directions to form a composite cycle, within a very short period of time to achieve uniform mixing.
Features
1, high mixing precision, speed, low energy consumption and sealing operation.
2, pneumatic, electric, manual material way.
3, the cylinder cover may be arranged atomizing device to achieve solid-liquid mixing.
Applications
  Chemicals, detergents, paints, resins, glass, silicon, paint, pesticides, fertilizers, feed, feed additives, wheat flour, milk powder, spices, trace elements, coffee, salt, additives, plastics and all kinds of pulp, dried powder and mixing.
Technical Specifications

Model Specifications WZ-0.05 WZ-0.1 WZ-0.3 WZ-0.5 WZ-1 WZ-2 WZ-3 WZ-4 WZ-6
Once mixed kg  24-30 40-60 120-180 200-300 400-600 800-1200 1200-1800 1600-2400 2400-3600
Installed powerkw 2.2 3 4-5.5 5.5-7.5 7.5-11 11-15 18.5-22 22-30 30-37
Equipment weightkg 250 360 750 880 2100  2740 3800 5100 6200
