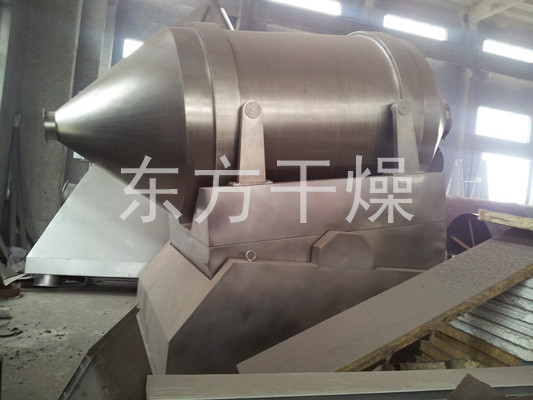

Working principle
Dimensional mixer mainly consists of drum, swing frame rack three parts. Turn barreled swinging rack, supported by two of four wheel gear wheel axially positioned them in four support rollers, two-by-turn driving wheel drag power generation system allows the drum rotates, swing frame by a group of crank rocker mechanism driven crank swing link mechanism on the frame, the swing frame supported by a bearing assembly in the rack.

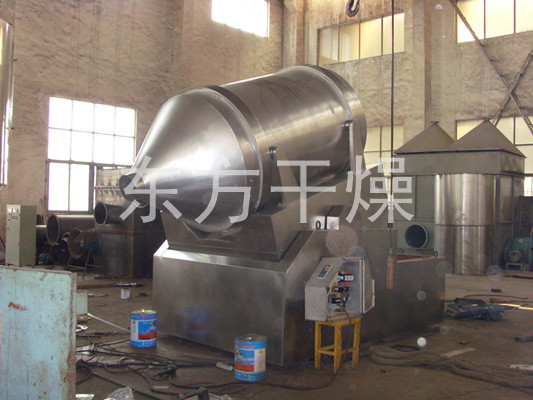

Features
EYH dimensional mixer drum can be two sports at the same time, as a rotating drum, the drum with the other is swinging the swing frame. Are mixed with the material drum in the drum is rotated, flipped, while mixing with the drum swinging back and forth about blending movement, under the combined effect of these two movements, the material is fully in a short time mixing. EYH dimensional mixer for mixing all powder, granular materials.

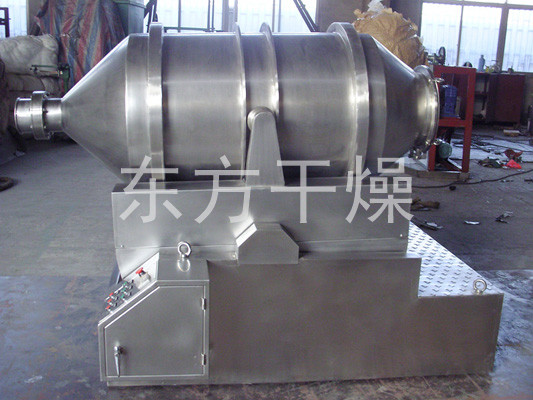

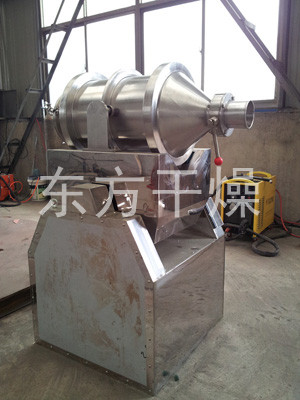

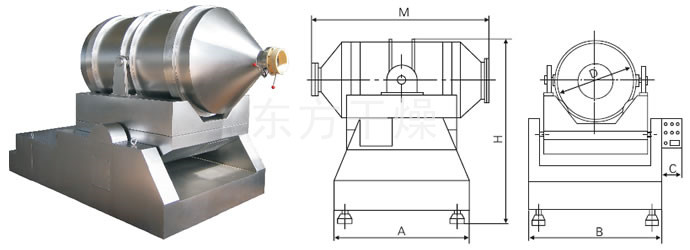

Technical Specifications
| Specifications Model | Volume（L） | Charge coefficient |
Charge weight （kg） |
Dimensions（mm） | Power（kw) | ||||||
| A | B | C | D | M | H | Turn | Swing | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
Press material bulk specific gravity 0.6g / cm3 for the meter, such as beyond, please indicate when ordering.
