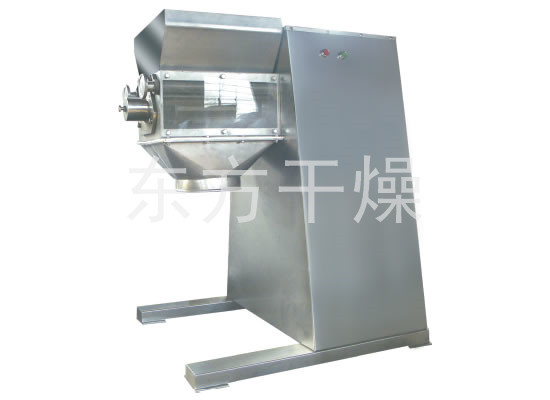

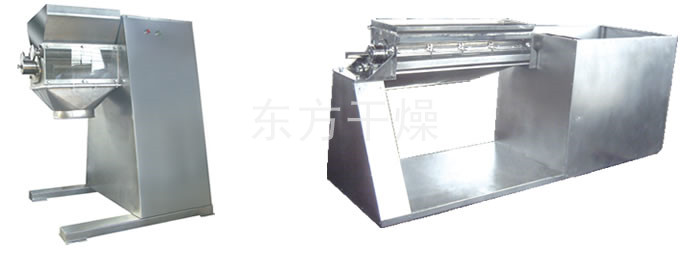

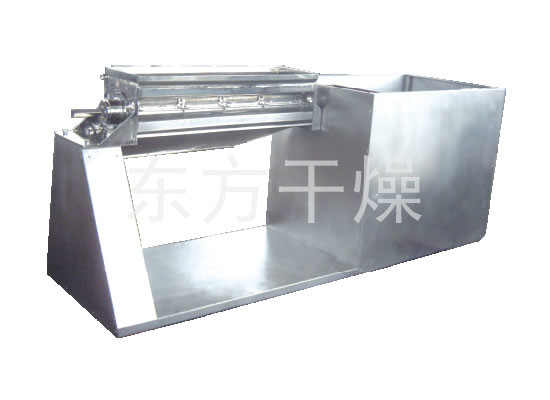

YK Series Swing Granules

working principle
  The stirred materials to the required particle size, or blocked raw materials into small particles.
Adapt materials

  This machine is suitable for pharmaceutical, chemical, food and beverage industry, solid granulation.


Technical Specifications

Model YK160 YK320
Production capacity 50-200 kg/h 50-400 kg/h
Motor Power 2.2kw 7.5kw
Roller Speed 65rpm 65rpm
Swing angle 360o 360o
Roller diameter Φ160mm Φ320mm
Weight 450kg 750kg
Dimensions 1000×800×1300m 1500×1200×1500m
