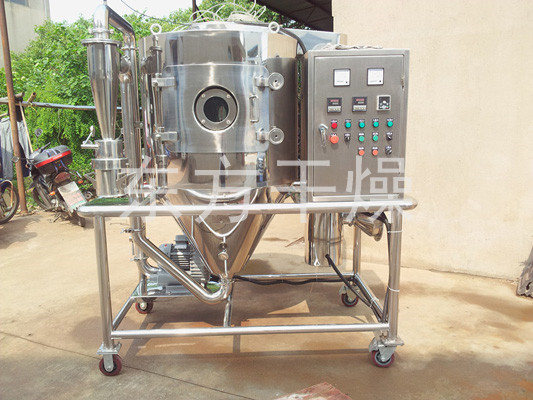

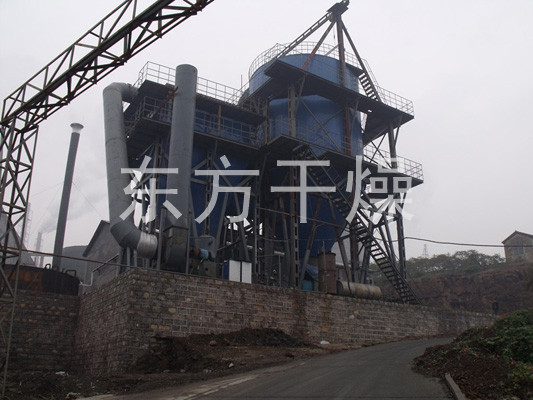

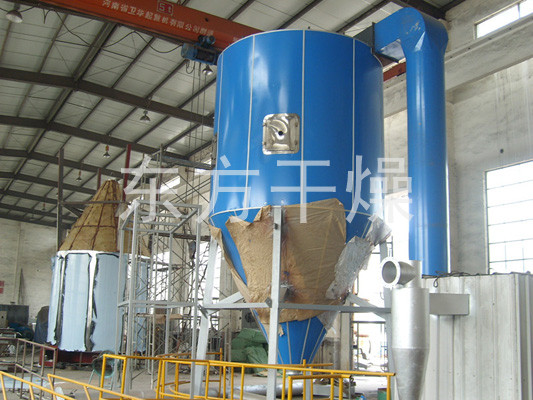

LPG High Speed Centrifugal Spray Dryer

Product description
  Spray drying is a process liquid process shaping and drying industry is the most widely used. Ideal for generating powdery, granular solid product from the solution, emulsions, suspensions and pasty liquid feedstock. Thus, when the finished product particle size distribution, residual moisture content, bulk density and particle shape must meet the precision standard, the spray drying is an ideal process.

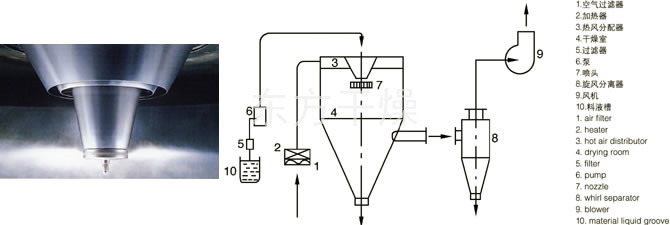

Working principle

  Heated air through a filter and into the top of the drier air distributor, the hot air was uniformly into the drying room in the spiral. Passing through the top of the tower high-speed centrifugal atomizer (rotary) sprayed into the extremely fine mist liquid beads in contact with the hot air stream and in a very short period of time can be dried into a finished product. Finished continuously from the bottom of the drying tower and cyclone exhaust gases vented by the fan.
Features

◎ drying speed, greatly increasing the surface area of the material after the liquid is atomized in a stream of hot air, it can instantly evaporate 95% -98% of water to complete the drying time of just a few seconds, especially suitable for drying heat sensitive materials.
◎ product has a good uniformity, mobility and solubility, high purity and good quality.
◎ production process is simplified, easy to operate controls. For moisture content of 40-60% (for special materials, up to 90%) of the liquid can be dried into a powder product, after drying without crushing and screening to reduce the production processes, improve product purity. For the size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, the control and management is very convenient.


Adapt materials
Chemical industry: sodium fluoride (potassium), basic dye pigments, dyes intermediates, fertilizer, formic silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black.
Plastic resin: AB, ABS latex, urea-formaldehyde resins, phenolic resins, dense glue (urea) formaldehyde resins, polyethylene, polyvinyl chloride and the like.
Food industry: fat-rich milk, armpit protein, cocoa milk powder, substitute milk, hunting blood meal, egg white (yellow) and the like.
Food and plants: oats, chicken juice, coffee, instant tea, seasoning meat, protein, soybean, peanut protein, hydrolyzate and so forth.
Sugar: corn syrup, corn starch, glucose, pectin, malt sugar, potassium sorbate.
Ceramics: alumina, ceramic tile material, magnesium oxide, talc and the like.


Technical Specifications

Model
Item / Parameter
5 25 50 150 200-2000
Inlet temperature 140-350 Automation
Outlet temperature 80-90
The maximum amount of moisture evaporation(kg/h) 5 25 50 150 200-2000
Centrifugal spray head drive form Compressed air drive Mechanical transmission
Maximum speed(r.p.m) 25000 18000 18000 15000 8000-15000
Spray disk diameter(mm) 50 120 120 150 180-240
Heat Electricity Steam + electricity Steam + electricity, fuel, gas, stove
Electric heating maximum power(kw) 9 36 72 99
Dimensions (length × width × height)(m) 1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 Determined according to the actual situation
Dry recovery(%) ≥95

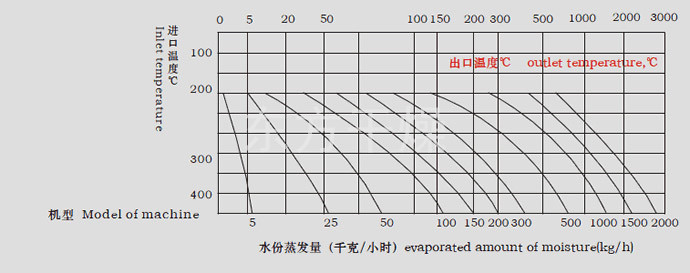

Note: The characteristics and thermal evaporation of water and the material inlet, outlet temperature-dependent. When the outlet temperature was 90 o C, its water evaporation curve shown above (for the selection of reference), with product updates, relevant parameters to change without prior notice.


Ordering Information
◎ name was material, the physical properties: Solid content (or water content), viscosity, surface tension, PH value incl.
After ◎ dried powder capacity, allow the residual water content, particle size, the maximum temperature allowed.
◎ production, opening times of the day.
◎ available energy: vapor pressure for the amount of capacity available for coal, oil, gas.
◎ control requirements: inlet and outlet temperatures need to be controlled.
◎ powder collecting requirements: whether you want to install the trap bag, environmental requirements for exhaust emissions.
◎ other special requirements.

Technical Specifications

Size A B C D E1 E2 F G H I
LPG-25 1290 3410 4260 1800 1200 1200 1000 1700 1300 1550
LPG-50 1730 4245 5100 2133 1640 1640 1250 1750 1800 1600
LPG-100 2500 5300 6000 2560 2100 2100 1750 1930 2600 1780
LPG-150 2800 6000 7000 2860 2180 2180 1970 2080 3050 1960
LPG-200 2800 6600 7300 3200 2300 2300 2210 2250 3050 2100
LPG-300 2800 8000 8700 3700 2800 2800 2520 2400 3040 2250
